61794-1
Manufacturer:
TE Connectivity
Mfr.Part #:
61794-1
Datasheet:
Description:

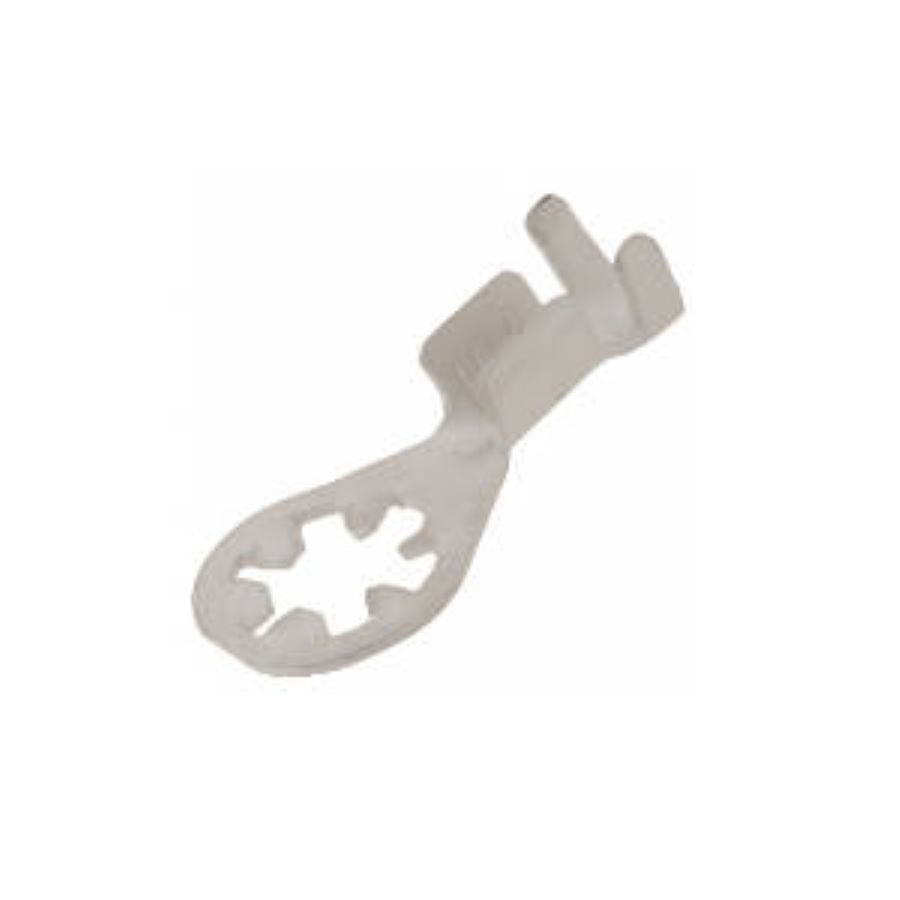

Terminals Free Hanging 14 AWG Female
| Parameter | Value |
|---|---|
| Length | 19.6 mm |
| Termination | Crimp |
| Material | Steel |
| Packaging | Reel |
| Depth | 9.4 mm |
| Thickness | 635 µm |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | Unknown |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Steel |
| Type | Ring |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Female |
| Body Material | Steel |
| Wire/Cable Gauge | 14 AWG |
| Insulation | Non-Insulated |
| Wire Gauge (Max) | 18 AWG |
| Wire Gauge (Min) | 14 AWG |
| Inside Diameter | 1.62 mm |
| Plating | Tin |
| Termination Style | Crimp |
| Insulation Diameter | 3.683 mm |
| Body Plating | Tin |
| Plating Thickness | 2.03 µm |
| Insulated Wire Support | Yes |
| Tab Thickness | 0.64 mm |
| Material Thickness | 635 µm |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Stud Diameter | 4.17 mm |
| Heavy Duty | No |
| Number of Holes | 1 |
| Stud Size | M4 |
| Tongue Thickness | 635 µm |
| Government Qualified | No |
Stock: 144612
Distributors
pcbx
pcbxUnit Price$0.21786
Ext.Price$0.21786
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.21786 | $0.21786 |
| 10 | $0.10893 | $1.08930 |
| 50 | $0.08379 | $4.18950 |
| 100 | $0.06445 | $6.44500 |
| 500 | $0.04958 | $24.79000 |
| 1000 | $0.03814 | $38.14000 |
| 3000 | $0.02934 | $88.02000 |
| 5000 | $0.02257 | $112.85000 |
| 10000 | $0.01955 | $195.50000 |
| 30000 | $0.01693 | $507.90000 |
